Product Description

New all-in-one large-volume laser tracker system that sets a new standard for portability, simplicity, robust construction and measurement efficiency.

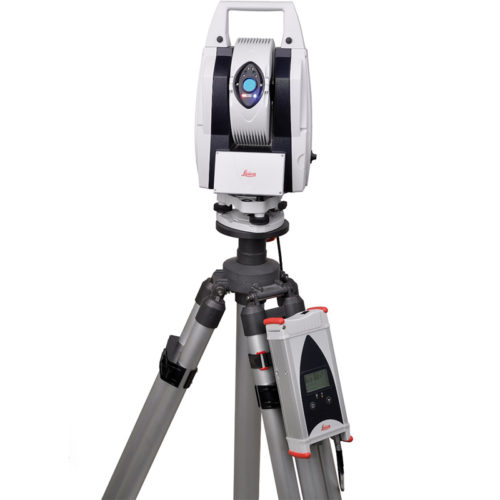

An all-in-one metrology solution more portable than any other on the market, the Leica Absolute Tracker AT402 from Hexagon Manufacturing Intelligence is a self-contained measurement workshop inside a compact and convenient single case.

With outperforming measurement process speed, operational simplicity like no other laser tracker and an unmatched level of robust construction, the Leica Absolute Tracker AT402 is a calculated bundle of affordable innovation without equal on the portable measurement market.

Improvements include faster and more economical stationary and continuous measurement processes, along with a streamlined station change procedure. Added WiFi access point functionality and hot-swappable batteries deliver unmatched measurement freedom. Designed for leading results in almost any imaginable measurement environment, it is rated for operation in temperatures ranging from -15 to 45 degrees Celsius and features built-in environmental monitoring, orient-to-gravity functionality and construction in line with the rigorous IP54 certification standard.

The Perfect Partner for the Leica B-Probe
The Leica Absolute Tracker AT402 presents the ideal solution for portable probing applications when paired with the established quality of the Leica B-Probe portable probing tool. This single-case portable probing system delivers improvements in measurement process speed and usability as well as customisable hidden-point reach. When added to the already class-leading cableless functionality of the Leica B-Probe, large-volume probing is now simpler and better than ever before.



Product Description





LEICA ABSOLUTE TRACKER AT402 SPECIFICATIONS
Dimensions Sensor Size: 290 x 221 x 188 mm (11.4” x 8.7” x 7.4”) Sensor Weight: 7.3 kg (16 lbs) Controller Size: 250 x 112 x 63 mm (9.8” x 4.4” x 2.5”) Controller Weight: 0.8 kg (1.75 lbs)	Absolute Distance Performance* Resolution: 0.1 µm Accuracy: +/- 10 µm (+/- 0.00039”) Repeatability: +/- 5 µm (+/- 0.0002”)
Range Infinite Horizontal Rotation: +/-360˚ Infinite Vertical Rotation: +/- 145˚ Typical Reflector Measurement Volume (ø): 320m Minimum Reflector Measurement Distance: 1.5m Minimum B-Probe Measurement Distance: 2.5m	Laser Emission Class 2 Laser Product in accordance with the IEC 60825-1 Second Edition (2007-03)
	General Information Overview Camera (OVC) 4:3 IR enhanced Image ≈ 10˚ FOV
Environmental Dust/Water: IP54 (IEC 60529) Operating Temperature: 0˚C to +40˚C Relative Humidity: Max. 95% (non-condensing) Altitude: -700 to 5500 m (-2,300 to 18,000 ft)	Environmental Monitor Internal – Temperature, Pressure and Humidity External – Air Temperature – Object Temperature
Motorization Acceleration: 360˚/s2 Rotation Speed: 180˚/s PowerLock: 10˚ FOV	Remote Control Integrated 4 Button IR Leica B-Probe Interfaces Cable – TCP/IP (Cat5) Wireless – WLAN (IEEE 802.11g)
Absolute Angular Performance* Resolution: 0.07 arc seconds Accuracy: +/- 15 µm + 6 µm/m (+/- 0.0006” + 0.000072”/ft) Repeatability: +/- 7.5 µm + 3 µm/m (+/-0.0003” + 0.000036”/ft)	Interfaces Cable – TCP/IP (Cat5) Wireless – WLAN (IEEE 802.11g)                                           Power Management Internal – lithium-ion battery with 10 hours typical runtime External – AC power supply Optional – Power Over Ethernet (PoE+)
Uxyz Coordinate Uncertainty* The measurement uncertainty of a coordinate “Uxyz” is defined as the deviation between a measured coordinate and the nominal coordinate of that point. This measurement uncertainty is specified as a function of the distance between the laser tracker and the measured point.	Leica B-Probe Specifications Measurement Volume (ø): 20 m Relocation Volume (ø): up to 320 m Battery Power: > 6 hours Dust/Water: Protection Class IP50 Hidden Point Capability: 150 mm (5.9”)
Reflector: +/- 15 µm + 6 µm/m (+/- 0.0006”+0.000072”/ft)	* All accuracies are specified as Maximum Permissible Errors (MPE) and calculated per ASME B89.4.19-2006 & draft ISO10360-10 using precision Leica 1.5” Red Ring Reflectors unless otherwise noted.
B-Probe: +/- 0.2mm (+/- 0.008”)
