Product Description

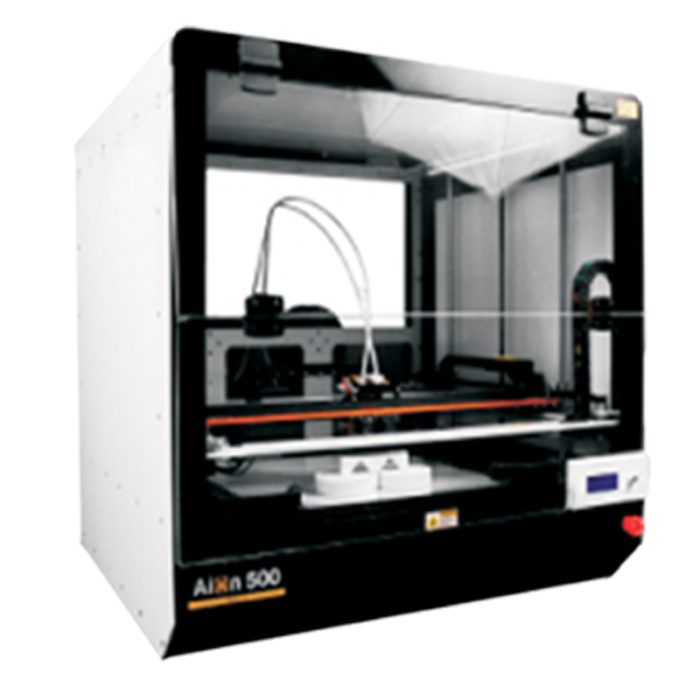

The revolutionary Aion 500 is one of the professional large build volume 3D printer with build volume of 500 mm × 500 mm × 500 mm., which offers professional high quality printing at an affordable price point. Aion 500 is designed to add maximum value in professional work set ups.
Aion 500 Technical Specifications | |
Physical Dimensions(DWH) | 955mm x 1040mm x 925mm (37.6in x 40.99in x 36.41in) |
Input Power** | 100-120VAC/180-250VAC |
Power Consumption | 1750W Max |
Input Frequency | 47-63 Hz |
Build Volume | 125litre(33.02gallon) |
Maximum Printable Area(Dual Extruder) | 500mm x 500mm x 500mm(19.68in x 19.68in x 19.68in) |
Heated Bed | High performance heated bed 150W 230V |
Filament Diameter | 1.75mm(0.06in) |
Extruder Diameter | 0.6mm/0.5mm/0.4mm(0.019in/0.15) |
Extruder Temperature | 270⁰ C |
Number Of Extruders | 2 |
Model Of Extruder | Direct DriveAll metal extruder |
Recommended Materials | ABS, PLA, HIPS, PETG, Carbon fibre, AFPM Special Material, & AFPM Carbon fibre |
Material Support | Non hygroscopic HIPS |
Maximum Print Speed | 200mm/s |
Build Rate(Material Deposition Rate) | 15-30 cm³/hour |
Layer Precision | 0.1-0.25mm (0.35mm possible for 0.5mm Nozzle) |
Heat Bed | Yes |
Bed Temperature | 90⁰ C max |
LCD Support | Yes |
Connectivity | USB, SD card, Wi-Fi, Ethernet |
Print Monitoring System | In build camera with Wi-Fi connectivity |
Software Supported | Repetier, Cura, Custom Software for DBZ, Kislicer |
Stepper Motor | 1.8 Degree steps angle With 1:256microstepping |
Positioning Accuracy | 20 microns |
Enclosure | Power coated 5mm sheet metal body |
Total Machine Weight | 250Kg |
Run Time Change Setting Option | Yes |
Pause Print Option | Semi-automatic-Yes(pause and resume even after extruder movement) |
Filaments Sensor | YES.(filament flow notification) |
Layer Thickness | Layer thickness range:range1:0.1-0.15,range2:0.15-0.25,range3:0.25-0.3 |
Multiple User Id | YES. Multiple secure access to machine control software |
XY Precision | Positional accuracy 16 micron using HIWIN High Precision Linear Guide Rails. |
Z Precision | Patented precision Z axis mechanism with electromechanically synchronized four ball screws and moving XY gantry |
Supporting System | Windows and Mac |
SD Standalone Format | .gcode |
Noise Level | 70db |
Training | Covered under 3 days free onsite training. |
